Fully-Automatic 15-mould Wafer Production line

Fully-Automatic 15-mould Wafer Production line

MOQ:1 set /Sets
Brand:Gelgoog Machinery
Certification: CE
Supply Ability: 100 sets/Per Month
PAY METHOD: WEST UNION L/C T/T CASH
Warranty Time: 12 Months
LOADING PORT: Qingdao
Country Of Origin: China

Features

Introduction:
Wafer Production line adopting hearing-medium conduction technology with heating oil as medium,the plant is a new generation product developed exclusively in China based on the advanced structure of existing plants from domestic market and abroad.If offers an ideal solution for lower power consumption and overall production cost,and keeping the same surface color for all biscuits.The plant mainly consists of mixing system,automatic feeding system, tunnel-type oven, sheet feeding and cooling device,coating machine,cutter and organic heating medium boiler, etc.With compact structure and unique reliability, the plant is one of the most preferred equipment in foodstuff industry.

Advantages:

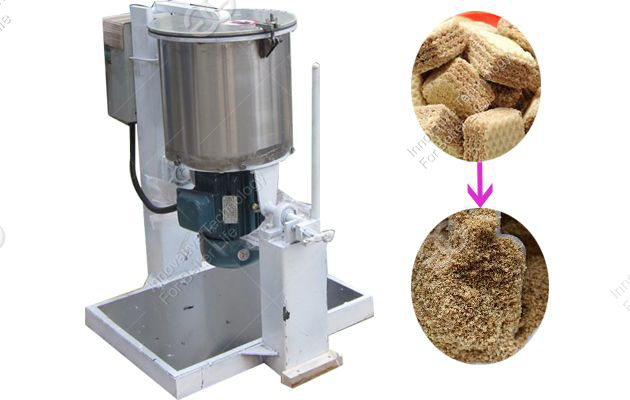

1.The blender machine is the mixing system, the first technology processing equipment in wafer manufacturing. It adopts the separate delivery and automatic circulation system.

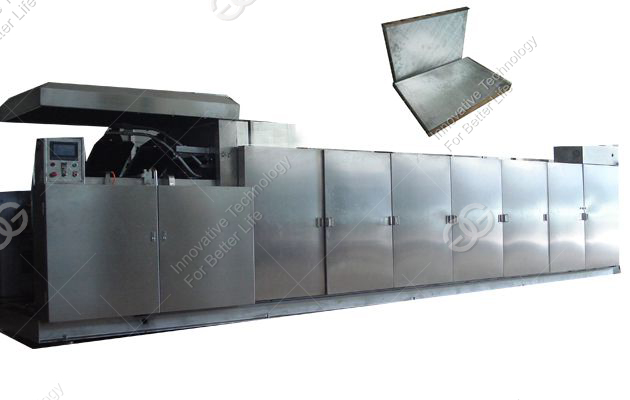

2.As to the most important part:Baking oven.Unanimous heat colors of wafer block. Thanks to the scientific selection of heating components, superior material selection for baking plate and reasonable die carrier structure, the heat colors of the center and periphery of the wafer block having been baked are unanimous.
3.High rate of certified products with finished product rate of not less than 98%. Because of uniform heating and unanimous heat colors, the demoulding rate of biscuit is high with improving rate of certified products accordingly.
4.About the wafer sheet cooling machine:Materials: The machine frame is made of steel with international standard and the cover adopts imported 304 stainless steel plate with thickness of 1.2mm and Φ6 stainless raw material.The machine runs slowly to cool down and convey the wafer block

Technical Data

Model	GGDL-15-1
Moulds quantity	15
Moulds size	47032525mm
Size of wafer stripe	3.03.00.5
Wafer thickness	2.0－3.0mm
Baking time	95~120 seconds（the thickness of wafer<2.5mm）
Capacity	560 pieces/h（the thickness of wafer:2.3mm）
Component materials in contact with food	304 # stainless steel or cast iron
Average Power	1.5kw
Voltage	3-phase，380V，50 Hz
Gas consumption	About 40m³/h
Dimension	326015602320mm
Weight	5700kg
